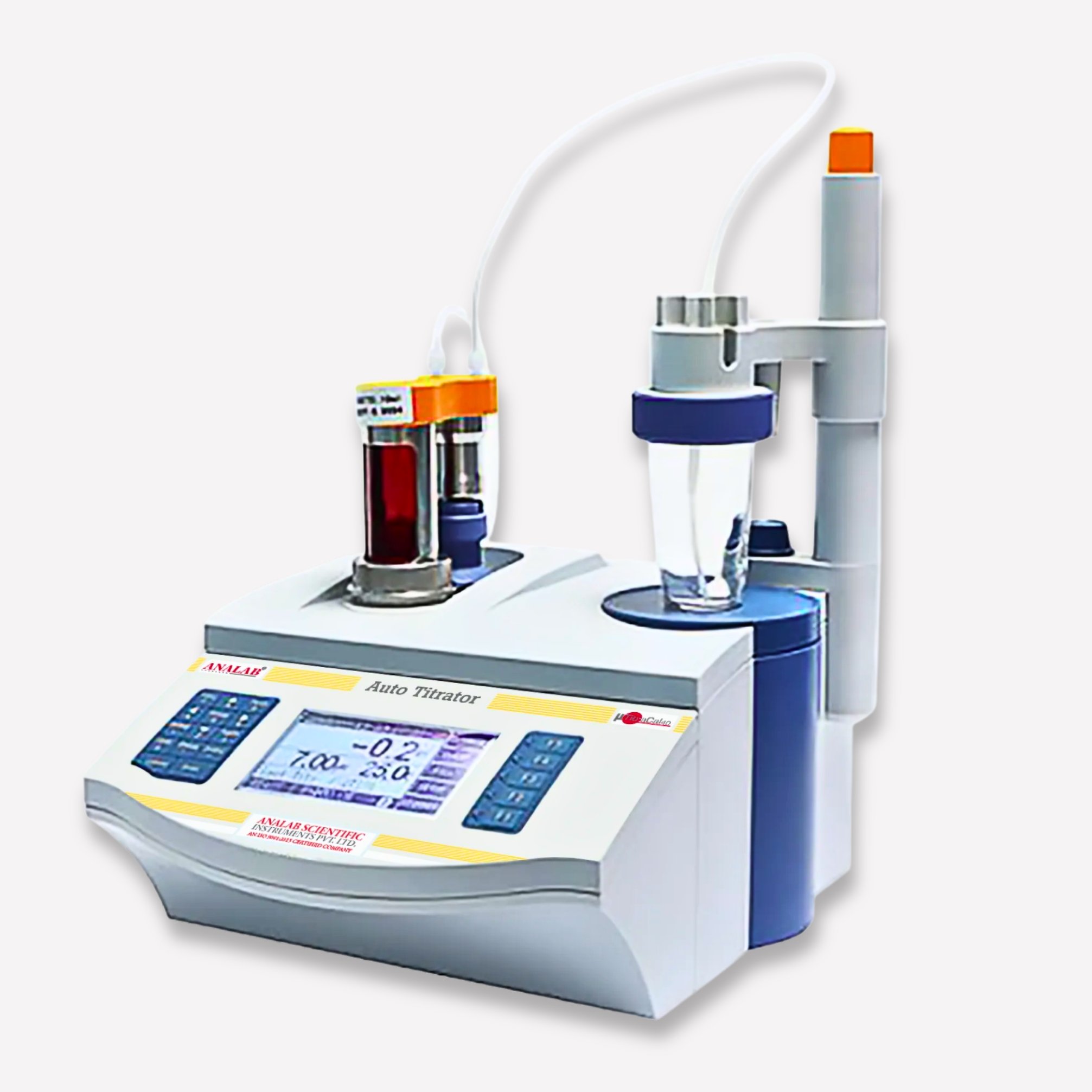

Auto Titrator
Supply with Combination Glass pH Electrode, Temperature Probe, pH Buffer (4.01, 7.00, 10.01), Beaker – 06 Nos., Push rod tool, Burette valve system 10mL, Stirrer Paddle – 03 Nos., Electrode holder system, Tubing 3.2 × 0.5 Dia – 02 Nos., Nut – 03 Nos., Glass bottle (1000 mL), Moisture Trap, Fuse – 02 Nos., USB Cable, Power Code, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.
Features
- LCD display screen and smart guide system
- Titration methods, curves and results are displayed in detail
- Replaceable burette with high-accuracy (10 ml or 20 ml selectable)
- Support titration modes:
● DET (dynamic equivalence point titration),
● MET (monotone equivalence point titration),
● SET (Preset Endpoint Titration) and
● MAT (manual titration) - pH calibration and measurement are supported
- Store up to 50 titration data sets (GLP-compliant) and 1 latest set of titration curve
- Data can be easily transferred to printer via RS-232 communication interface
- Titrator can be controlled by computer via USB or RS-232 communication interface
Technical Specification
|
Model |
µTitraCal40 |
|
|
Burette |
Repeatability |
≤ 0.2% |
|
Accuracy |
10ml Burette: ±0.025ml 20ml Burette: ±0.035ml |
|
|
Mechanical Unit |
Resolution |
1/14000 |
|
Measuring Unit |
Range |
(-1800.00~1800.00) mV (0.00~14.00) pH |
|
Resolutions |
0.1mV, 0.01 pH |
|
|
Accuracy |
pH: ±0.01 pH mV: ±0.05% FS |
|
|
Fluctuation |
±0.3mV/3h |
|
|
Temperature Compensation |
Range |
(-5.0~105.0) °C |
|
Resolutions |
0.1 °C |
|
|
Accuracy |
±0.3 °C |
|
|
General |
Power Supply |
AC Adapter, 100-240V AC input, C24V output |
|
Dimensions |
340 × 400 × 400 mm |
|
|
Weight |
10 kg |
|
