Cooling Incubators
Roll over image to zoom in

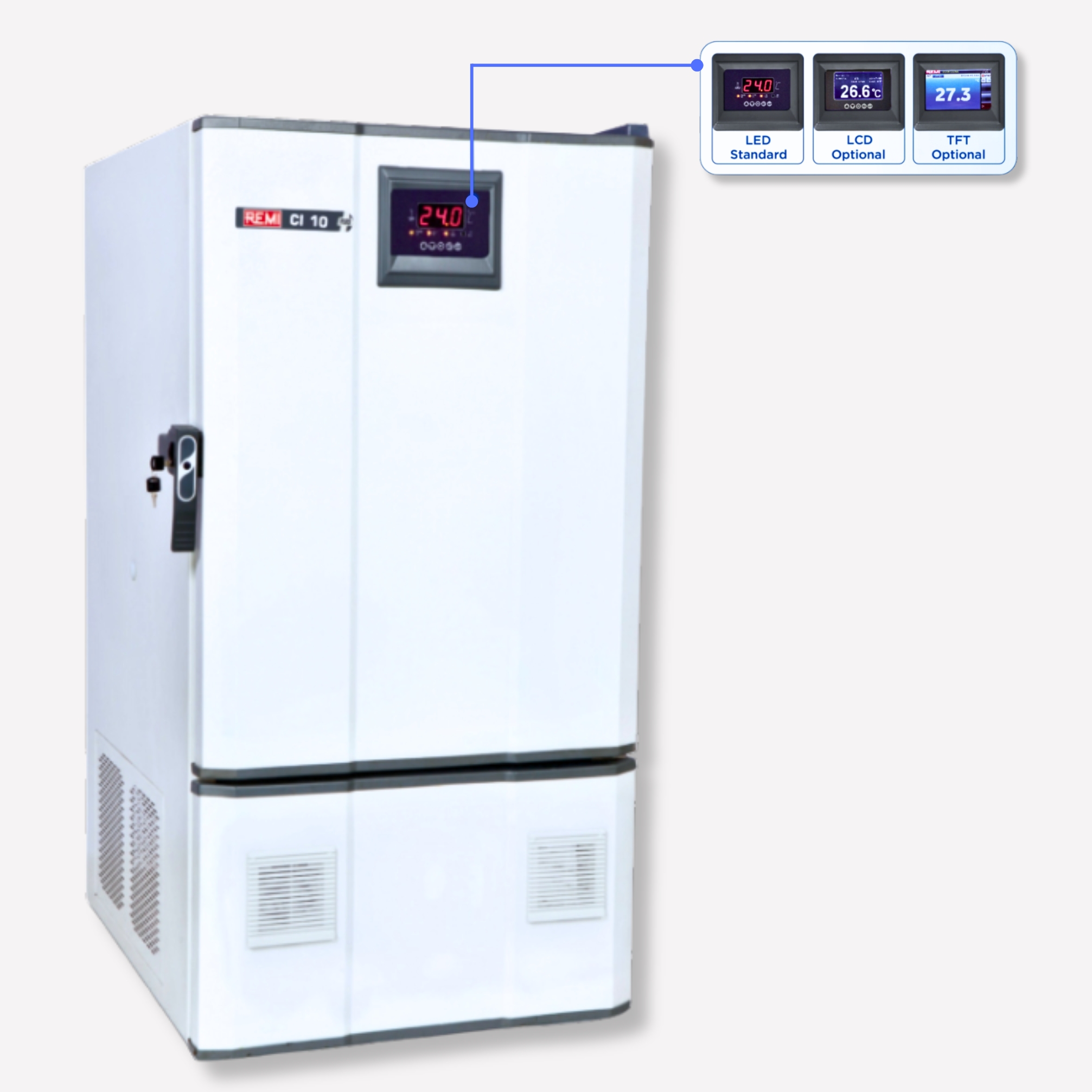

REMI Cooling Incubators are designed for applications in pharmaceutical, microbiology, biotechnology, chemical & research labs. These chambers are used for BOD test culture of bacteria, microorganism, tissue culture, incubation, immunological work & storage of vaccines etc.
- Features
- LCD Display & Touch Screen Display
- REMI ‘Data Soft’ & Optional Accessories
- Technical Specifications
Features
Cooling Incubator / Stability Chamber Features
- Temperature range 5°C to 60°C
- Unique design of thermal barrier for better energy efficiency
- Machine filled CFC free PUF insulation to eliminate void pockets
- Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber
- Heating by long life SS tubular heaters
- Chamber calibration port on side
- Adjustable trays
- Hermetically sealed Compressor with CFC free refrigerant
- High temperature safety cut off & alarms for high / low set parameters
- Sensor failure alarm
- Electrical circuit breaker
- Time delay for compressor switch on
- Overload cut off relay for compressor
- Rounded inner chamber for easy cleaning
- Attractive door profile
- Microprocessor controller with LED display of Temperature with set, process value & audio visual alarm (standard)
- Weight carrying capacity of each tray: 15 Kg uniformly distributed
- Auto door closer
- Smart Handle with LED door closure indication
Optional Features
- 4″ LCD display with additional features (Details overleaf)
- Touch screen display (TFT) with additional features (Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
- Port for calibration probes / safety back up
LCD Display & Touch Screen Display
LCD DISPLAY
Features
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain temperature in case of sensor failure
- Battery Backup for Temperature Controller
- Auto tuning of controller
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Settable High / Low alarm points
- Memory for storage of up to 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- Alarm on equipment / output for remote alarm
- Cyclic Transfer (Optional)
TOUCH SCREEN DISPLAY
Features
- 7 inch big colour touch screen
- PLC (Programmable logic controller)
- Memory of 10,000 records
- Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval
- Ethernet port
- Battery backup in case of power failure for display, alarms & offline data logging (optional)
- Programmable cyclic timer for controlling illumination conditions
- Remi Datasoft Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)
REMI ‘Data Soft’ & Optional Accessories
REMI ‘DATA SOFT’
Features
- Multiple level alpha numerical password with password ageing
- Secured audit trail report
- Alarm report with mention of alarm condition
- Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
- Reports in graphical and tabular form
- Data Stored in PC server with LAN connectivity and can be monitored on PC with password authentication
- Multi chamber data acquisition on single software
- Communication through RS 485 / TCP IP
- Power failure and resumption recorded with date and time
OPTIONAL ACCESSORIES
To Be Ordered Separately
- Chamber illumination with the help of 2 Nos. fluorescent tubes
- Chamber illumination with 2 Nos. ultra violet lights
- 24 hours Cyclic Timer for regulating illumination conditions
- Data logger for 8 Point temperature recording with sensor printer interface and software
- Software as per 21 CFR Part 11 requirements
- PLC Based Control System with HMI Touch Screen
- Biometrics Magnetic Door Access for Secured Door opening with software to maintain log
- Validation (mapping) consist of one cycle for temperature at any one set point for 24 hours on empty and loaded condition
- Standby Refrigeration System
- GSM alert through SIM card
Technical Specifications
| Technical Specifications | ||||||||
| CI-6 Plus | CI-10 Plus | CI-12 Plus | CI-16 Plus | CI-19 Plus | CI-28 Plus | CI-35 Plus | ||
| Internal Volume (Litres) | 200 | 280 | 370 | 450 | 540 | 800 | 1000 | |
| Number of tray | 2 | 3 | 4 | 5 | 6 | 6 | 7 | |
| Internal Dimensions W x D x H (mm) | 660 x 655 x 450 | 660 x 655 x 650 | 660 x 655 x 850 | 660 x 655 x 1050 | 660 x 655 x 1250 | 800 x 800 x 1250 | 800 x 800 x 1580 | |
| External Dimensions W x D x H (mm) | 800 x 1095 x 1020 | 800 x 1095 x 1220 | 800 x 1095 x 1420 | 800 x 1095 x 1620 | 800 x 1095 x 1820 | 960 x 1370 x 1950 | 960 x 1370 x 270 | |
| Temperature Range & Accuracy | 5°C to 60°C, ± 0.5°C | |||||||
| Temperature control | Microprocessor with PT-100 sensor | |||||||
| Display | 1” – 7 Segment, Big Size LED | |||||||
| Power Failure Alarm | Visual Alarm | |||||||
| Door Open Alarm | Audio Visual Alarm in case door open for over one minute | |||||||
| Temperature Variation Alarm | Set Temperature ± 2°C, Audio Visual Alarm | |||||||
| Illumination | 8 Watts Fluorescent Tube | |||||||
| Internal Body Material | Stainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models) | |||||||
| External Body Material | Powder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models) | |||||||
| Insulation | 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam | |||||||
| Noise Level | Less Than 65 db(A) | |||||||
| Recommended Voltage Stabilizer | VS-02 | VS-02 | VS-02 | VS-03 | VS-03 | VS-06 | VS-06 | |
Supply: 220-240 Volts, 50 Hz Single Phase.
