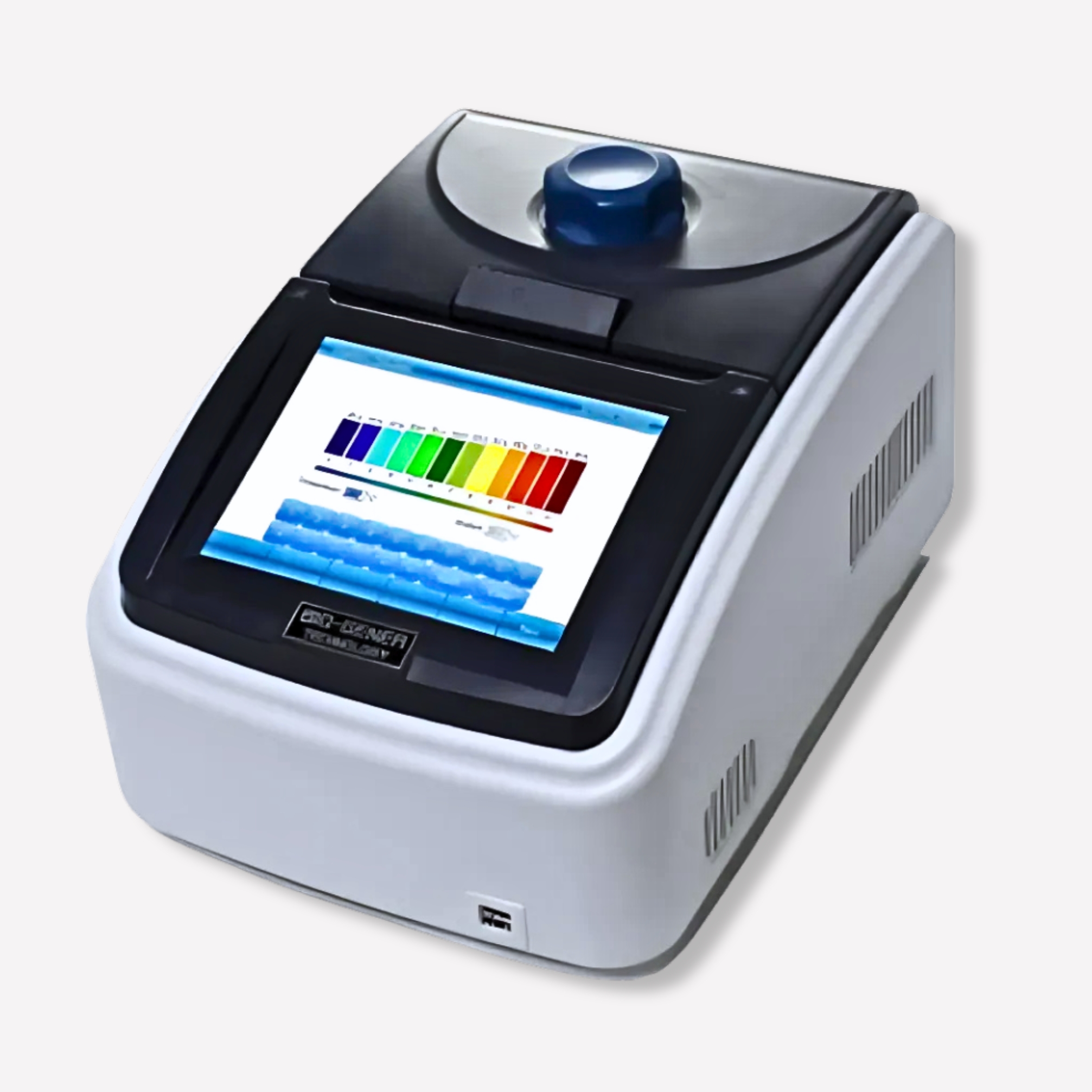

Gradient Thermal Cycler
Roll over image to zoom in
Polymerase Chain Reaction (PCR) is widely used in Molecular biology. As PCR progresses, the DNA thus generated is itself used as a template for replication. With PCR it is possible to amplify a single or few copies of a specific DNA fragment across several orders of magnitude, generating millions of copies of the DNA fragments.
Features
- Advanced technologies, WINDOWS operating system.
- Automatic restart after power failure.
- Each thermal block has 4 independent temperature control sensors and 8 peltier heating units to ensure accurate and uniform temperature across block surface, and provide users with replicating previous condition set-up.
- 8” TFT color touch-screen with graphical display provides easy use for setting up and monitoring set parameter.
- The actual and target temperatures can be viewed and displayed graphically in real time.
- Built-in 11 standard program file template, can quickly edit the required files.
- Internal flash memory for 10000 typical PCR files in free configurable folders.
- Compatible with mouse, keyboard, capable to transfer data and perform software updates via USB Drive.
- Applicable with the following 0.2ml tube models: non-skirted, semi and fully skirted plated.
- Replaceable module, dual-block module can simultaneously run two different PCR programs.
Gradient Thermal Cycler PCR
| MODEL | PCR9602G |
|---|---|
| Capacity | 96×0.2ml |
| Make | LABMAN |
| Temperature Range | 0 ~ 100°C |
| Max. Heating Rate | 5°C/s |
| Max. Cooling Rate | 4°C/s |
| Uniformity & Accuracy | ±0.1°C |
| Display Resolution | 0.1°C |
| Temperature Control | Block / Tube |
| Ramping Rate Adjustable | 0.1°C ~ 5°C |
| Gradient Uniformity | ±0.2°C |
| Gradient Accuracy | ±0.2°C |
| Gradient Temp. Range | 30°C ~ 100°C |
| Gradient Spread | 1°C ~ 30°C |
| Hot Lid Temperature | 30°C ~ 110°C |
| Hot Lid Height Adjustable | Stepless adjustable |
| Number of Programs | 10000 (+USB FLASH) |
| Max. No. of Step | 30 |
| Max. No. of Cycle | 99 |
| Time Increment/Decrement | 1 Sec ~ 9 Min 59 Sec |
| Temp. Increment/Decrement | 0.1°C ~ 9.9°C |
| Pause Function | Yes |
| Auto Data Protection | Yes |
| Hold at 4°C | Forever |
| Print, LAN to computer | Yes |
| LCD display | Touch Screen, 8inch, 800×600 Pixels, TFT |
| Communication | USB2.0 , LAN |
| Power Supply | 85 ~ 264VAC , 47 ~ 63Hz , 600 W |
| Dimension (L×W×H) & Weight | 380 × 240 × 260 mm & 9 kg |
