Humidity Chember
Roll over image to zoom in

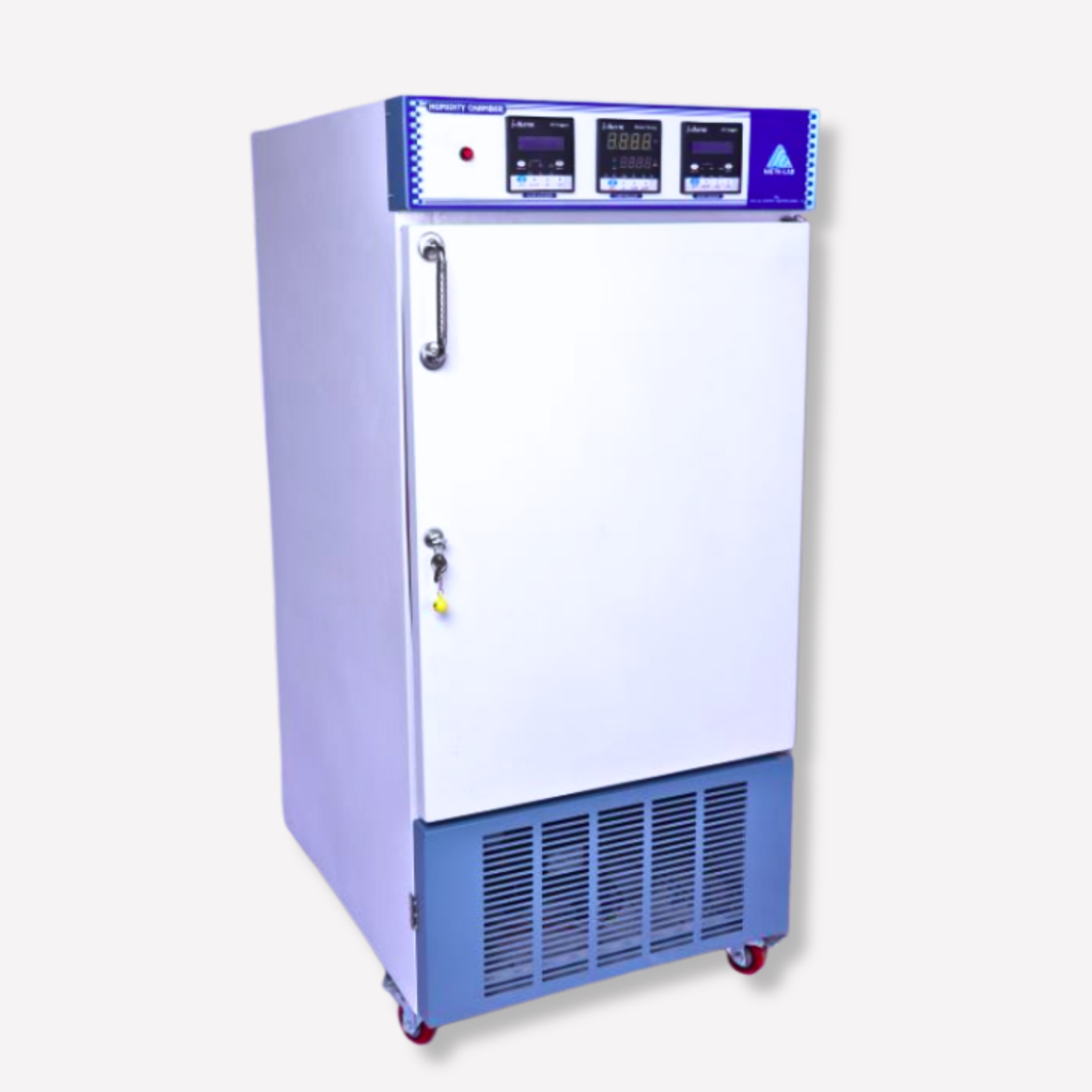

The Metalab Humidity Chamber is a precision-engineered environmental testing unit designed for simulating various humidity and temperature conditions. Ideal for pharmaceutical, electronics, and industrial testing applications, it features a robust stainless steel construction, digital temperature and humidity controllers, and a user-friendly interface for accurate and consistent results.
Product Description
- Double walled construction
- Inner made of Stainless steel 304
- Inner chamber mirror finished
- Exterior galvanized sheets powder coated
- Gap between the two walls filled with PUF insulation
- Inner acrylic door & external metal door with magnetic gasket & lock
- Cooling is by hermetically sealed compressor
- CFC free refrigerant
- Heating is by specially designed air heaters
- Forced air circulating system with fan for better temperature uniformity
- Microprocessor based auto-tune PID digital temperature controller
- LED display for set & actual both
- Simplex A class transition joint PT 100 as sensor
- Illumination by tube
- Supplied with S.S. rod shelves
- Temperature Range: up to 60.0°C
- Humidity Range: up to 95% RH
- Temperature Resolution: 0.1°C
- Control Accuracy: ±0.5°C
| Capacity | Chamber Size in Cms | Ratings | No. Of Shelves |
|---|---|---|---|
| 6 Cu Ft 170 Ltr | 50X50X70 | 1250W | 3 |
| 12 Cu Ft 330 Ltr | 60X60X90 | 1500W | 4 |
Optional accessories
- Safety temperature controller
- Single channel data logger with print output
- RS 485 for PC communication with 21 CFR Part 11 compliance software
- 7″ HMI touch screen display
