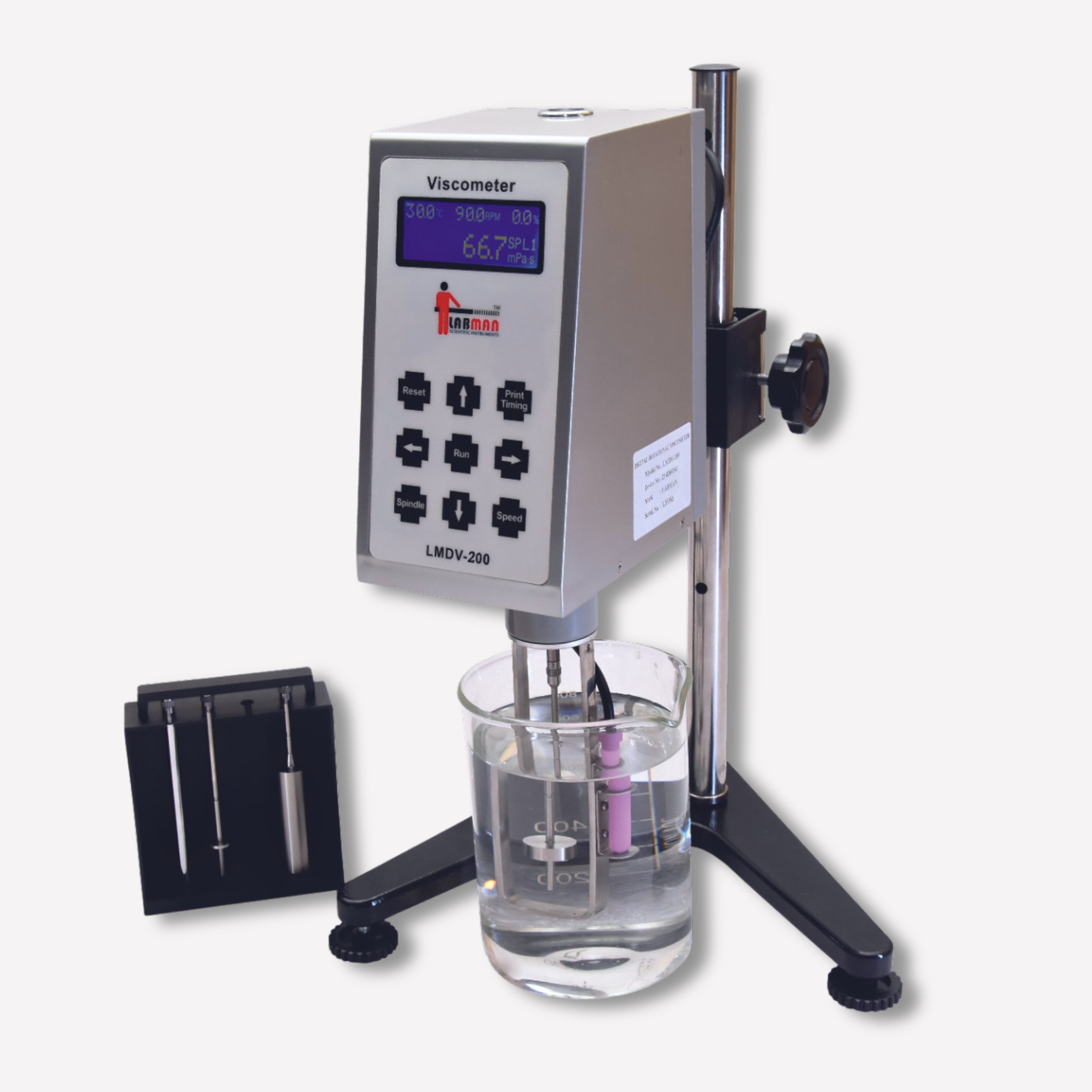

LMDV200 Digital Rotational Viscometer
Roll over image to zoom in
Labman LMDV series is a Rotational Digital Direct Reading Viscometer to measure absolute viscosity of Newtonian liquids as well as apparent viscosity of non–Newtonian liquids. It is featured by high flexibility, reliable test results, easy operation, and good appearance.
feature
- Auto Range function
- Selectable Speed
- Direct Viscosity reading and temperature display
- Big Ultra Bright Backlight LCD Display
Specification
| Model | LMDV60 | LMDV100 | LMDV200 |
|---|---|---|---|
| Make | LABMAN | ||
| Measuring Range mpa.s | 20–2,000,000 | 12–6,000,000 | 6–6,000,000 |
| Speed | 0.3 to 60 | 0.1 to 99.9 | 0.1 to 200 |
| No of Speed | 8 | 1000 | 2000 |
| Speed Type | Selectable Stepless Speed (nonpolar shift) | ||
| Shear Rate, Shear Force Display | No | No | Yes |
| No of Standard Spindle | 4 (L1, L2, L3, L4) | ||
| Display | LCD | ||
| Temperature Monitoring | Yes | ||
| Measurement Accuracy | ±1% (FS) | ||
| Repeatability | ±0.5% (FS) | ||
| Output | RS232C Interface | ||
| Power Supply | DC Adaptor, Using AC 220V, 50/60Hz | ||
| Dimension L×W×H (mm) | 400 × 360 × 379mm | 405 × 357 × 380mm | 412 × 360 × 380mm |
| Weight | 8 kg | 8 kg | 8 kg |
