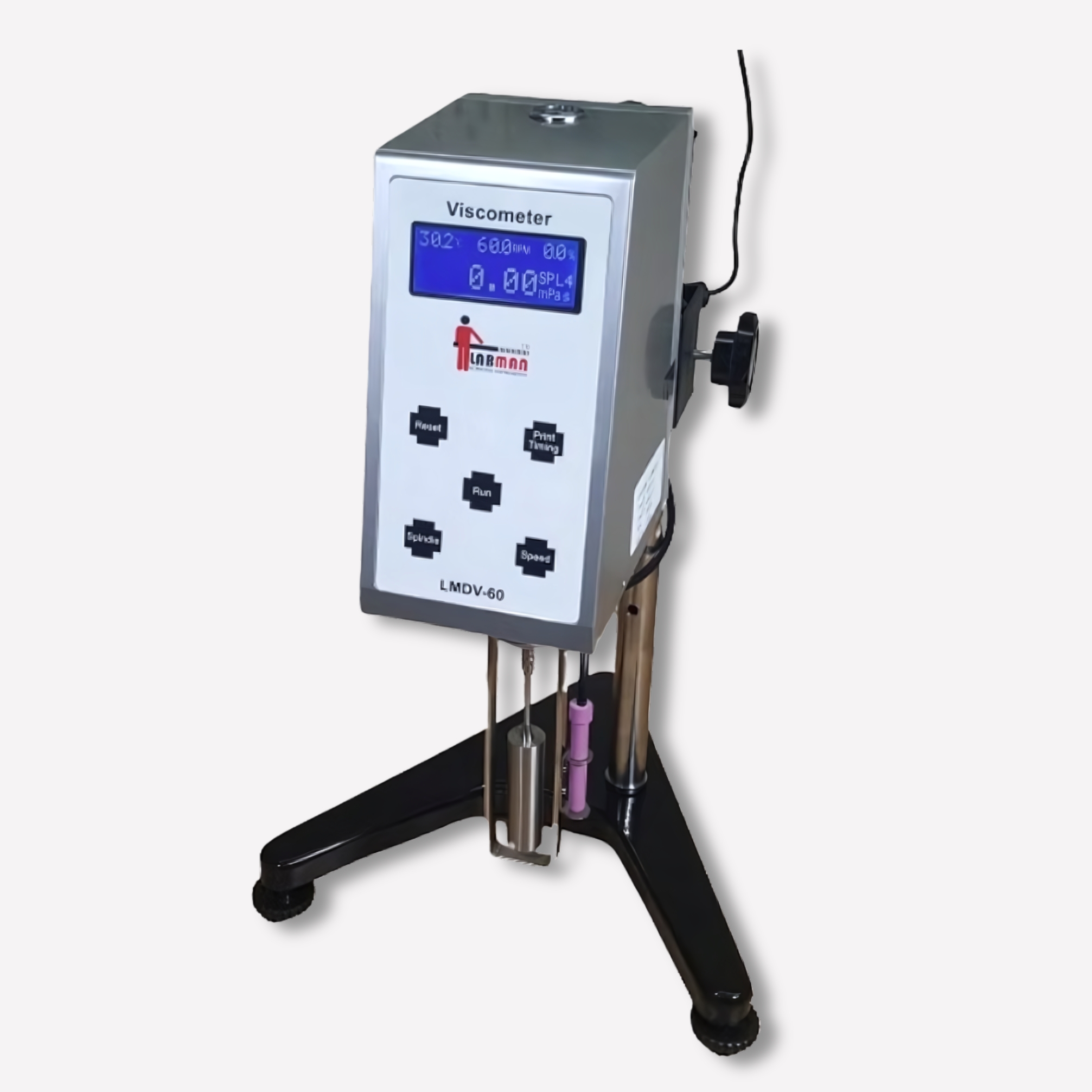

LMDV60 Digital Rotational Viscometer
Roll over image to zoom in
The LMDV60 is a high-precision digital rotational viscometer designed for accurate and reliable viscosity measurement of fluids across a wide range of industries. Featuring a user-friendly interface, real-time digital display, and robust motor control, it ensures stable performance and repeatable results. Ideal for use in laboratories, quality control, and R&D applications.
Labman LMDV series is a Rotational Digital Direct Reading Viscometer to measure absolute viscosity of Newtonian liquids as well as apparent viscosity of non–Newtonian liquids. It is characterized by high flexibility, reliable test results, easy operation, and good appearance.
Specifications
| Model | LMDV60 | LMDV100 | LMDV200 |
|---|---|---|---|
| Make | LABMAN | ||
| Measuring Range mpa.s | 20–2,000,000 | 12–6,000,000 | 6–6,000,000 |
| Speed | 0.3 to 60 | 0.1 to 99.9 | 0.1 to 200 |
| No of Speed | 8 | 1000 | 2000 |
| Speed Type | Selectable Stepless Speed (nonpolar shift) | ||
| Shear Rate, Shear Force Display | No | No | Yes |
| No of Standard Spindle | 4 (L1, L2, L3, L4) | ||
| Display | LCD | ||
| Temperature Monitoring | Yes | ||
| Measurement Accuracy | ±1% (FS) | ||
| Repeatability | ±0.5% (FS) | ||
| Output | RS232C Interface | ||
| Power Supply | DC Adaptor, Using AC 220V, 50/60Hz | ||
| Dimension L×W×H (mm) | 400 × 360 × 379mm | 405 × 357 × 380mm | 412 × 360 × 380mm |
| Weight | 8 kg | 8 kg | 8 kg |
