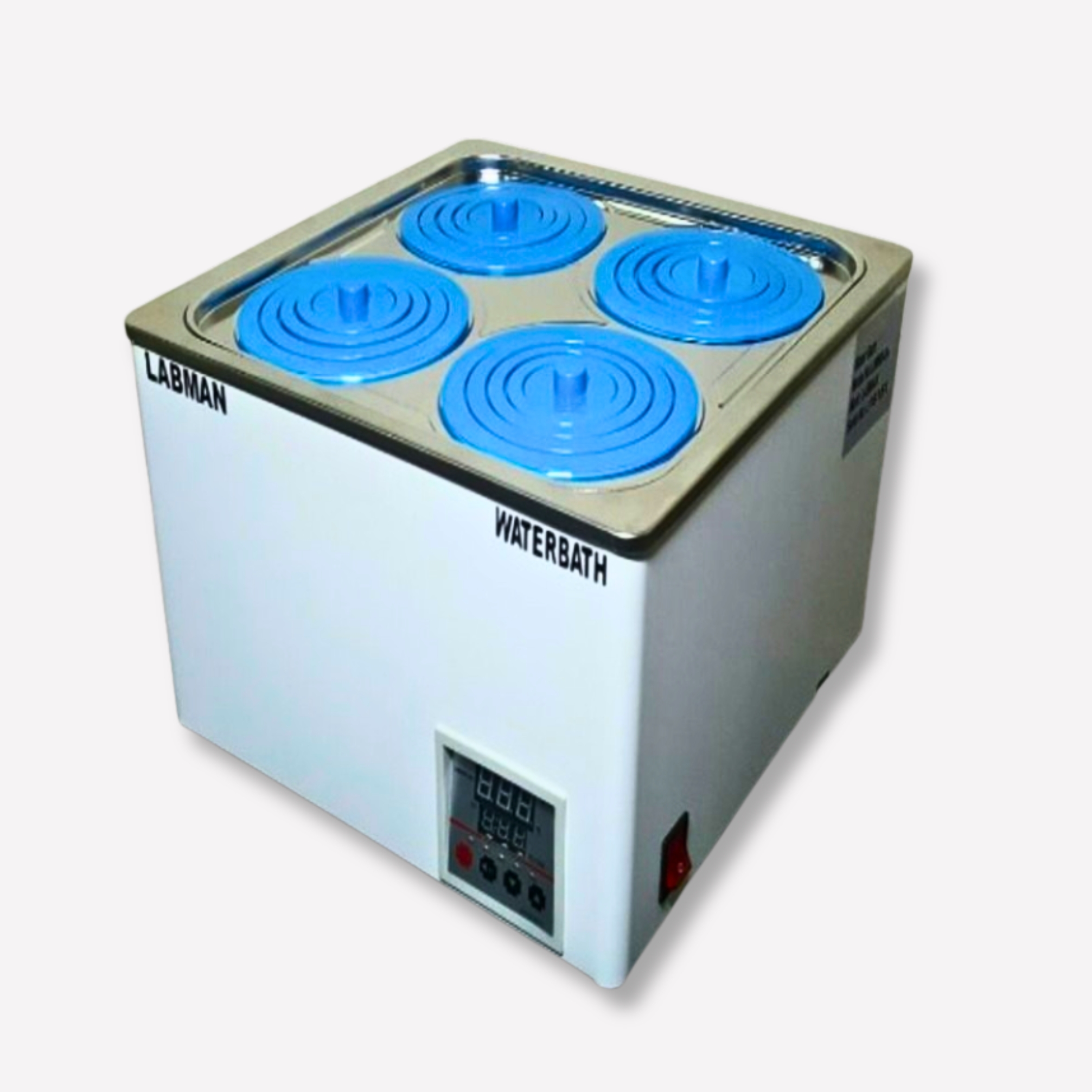

LMWB04
Roll over image to zoom in
Water bath adopts new design structure, which could avoid the leakage of steam. There are pointer type temperature controller and intellectual type temperature controller for selecting. The intellectual temperature controller has high lightness digital display and key operating button, which is easy to operate. It has high precision on controlling the temperature
Specifications
| Model | LMWB04 | LMWB06 |
|---|---|---|
| Column | 2 rows 4 holes | 2 rows 6 holes |
| Make | LABMAN | |
| Temp. range | RT+5~100°C | |
| Temp. Resolution Ratio | 0.1°C | |
| Temp. Accuracy | ±0.5°C | |
| Temp. Uniformity | ±1°C | |
| Water sink | Stainless steel, surface electrolysis treatment | |
| Outer shell | Cold rolled steel plate, surface electrostatic powder spray | |
| Heater | Stainless steel U type heating tube | |
| Temp. control mode | PID | |
| Timer | 0~999 min (with timing function) | |
| Timing function | Fixed temperature operation, timing function, auto stop | |
| Program | Optional: multi-selection program control | |
| Additional function | Deviation correction, menu key lock, power failure backup, power-off parameter memory, PID adjustable | |
| Sensor | Thermal resistor | |
| Safety device | Over-temperature alarm, short-circuit protection | |
| Power rating | 800W | 1200W |
| Inner Chamber size (WxLxH)mm | 305x305x135 | 470x305x130 |
| Packing size (WxLxH) (mm) | 405x405x250 | 565x405x250 |
| Internal volume (approx.) | 12L | 18L |
| Cover aperture | Ø120mm | |
| Cover Rings per hole | 5 | |
| Power Supply | Adaptor, Using AC 220V, 50/60Hz | |
| Weight | 6.5kg | 8kg |
Features
- It adopts new design structure, which could avoid the leakage of steam.
- There are pointer type temperature controller and intellectual type temperature controller for selecting.
- The intellectual temperature controller has high lightness, digital display and key operating button, which is easy to operate. It has high precision on controlling the temperature.
- Thermostatic Water Baths uses evaporating, drying, concentrating and thermostatically heating.
- Widely adopted in medical and research units, factories, universities, chemical dyeing and petroleum.
