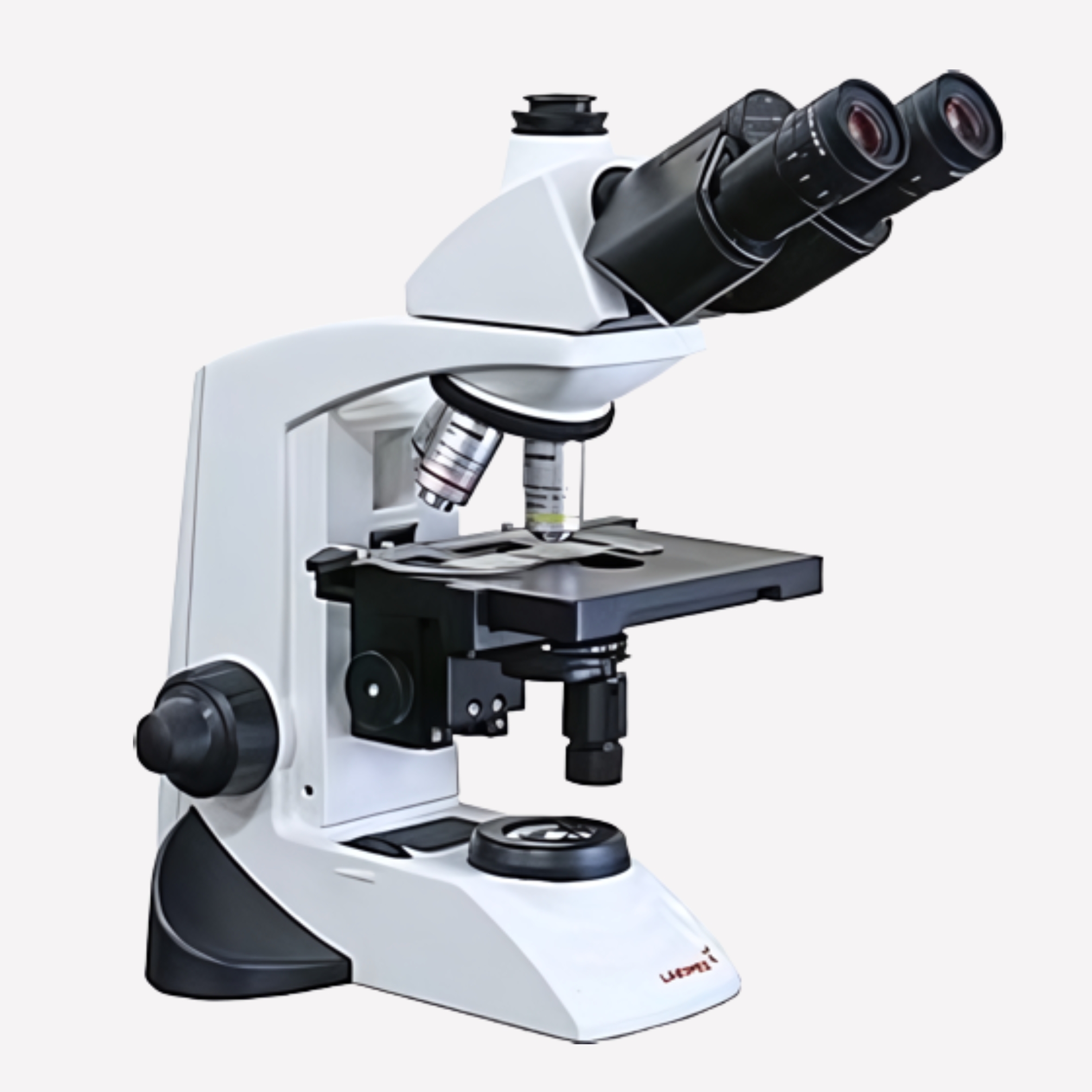

Lx 300
Roll over image to zoom in
EP2 series Infinity Corrected Plan Achromatic objectives provide crisp and accurate images at all powers. The optical system allows for the introduction of digital accessories while maintaining the highest level of performance.
Microscope
| Stand | Single mold sturdy stand with anti-rust materials. Ergonomic base for hand rest and greater stability. |
|---|---|
| Viewing Body | Siedentopf Binocular (Butterfly style) or Trinocular head, 45° inclined, 360° rotatable, with adjustable viewing height up to 40mm, IPD 48 – 75mm |
| Eyepieces | Wide field 10x/18mm with foldable eye guards, lockable, antifungal |
| Nosepiece | Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives | EP2 Plan Achromat DIN Infinity objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal |
| Mechanical Stage | Double plate stage 150 x 135mm, X-Y travel range 75mm x 40mm with low-height controls. Hard coated surface for scratch resistance. Double specimen holder. |
| Condenser | Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on metal guides |
| Focusing | Coaxial coarse and fine focus on ball drive system for smooth operation |
| Illumination | Intensity controlled LED (up to 50,000 hours of LED life) |
| Electronics | Universal input 100V – 240V AC, 50/60Hz. Built-in voltage stabilizer |
Package Contents
- Power Cable (6ft)
- Cargille Immersion Oil
- Spare bulb (20w version only)
- Nylon Dust Cover & Cleaning Cloth
- Styrofoam Casing
Accessories (Optional)
- Pointers & Micrometer Reticules
- Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
- Dual Viewing Bridge
- Quintuple Position Viewing Bridge
- Auxiliary Objectives and Eyepieces
- Cord Hanger Kit
- Digital Cameras and Adapters
- Soft Carrying Case
