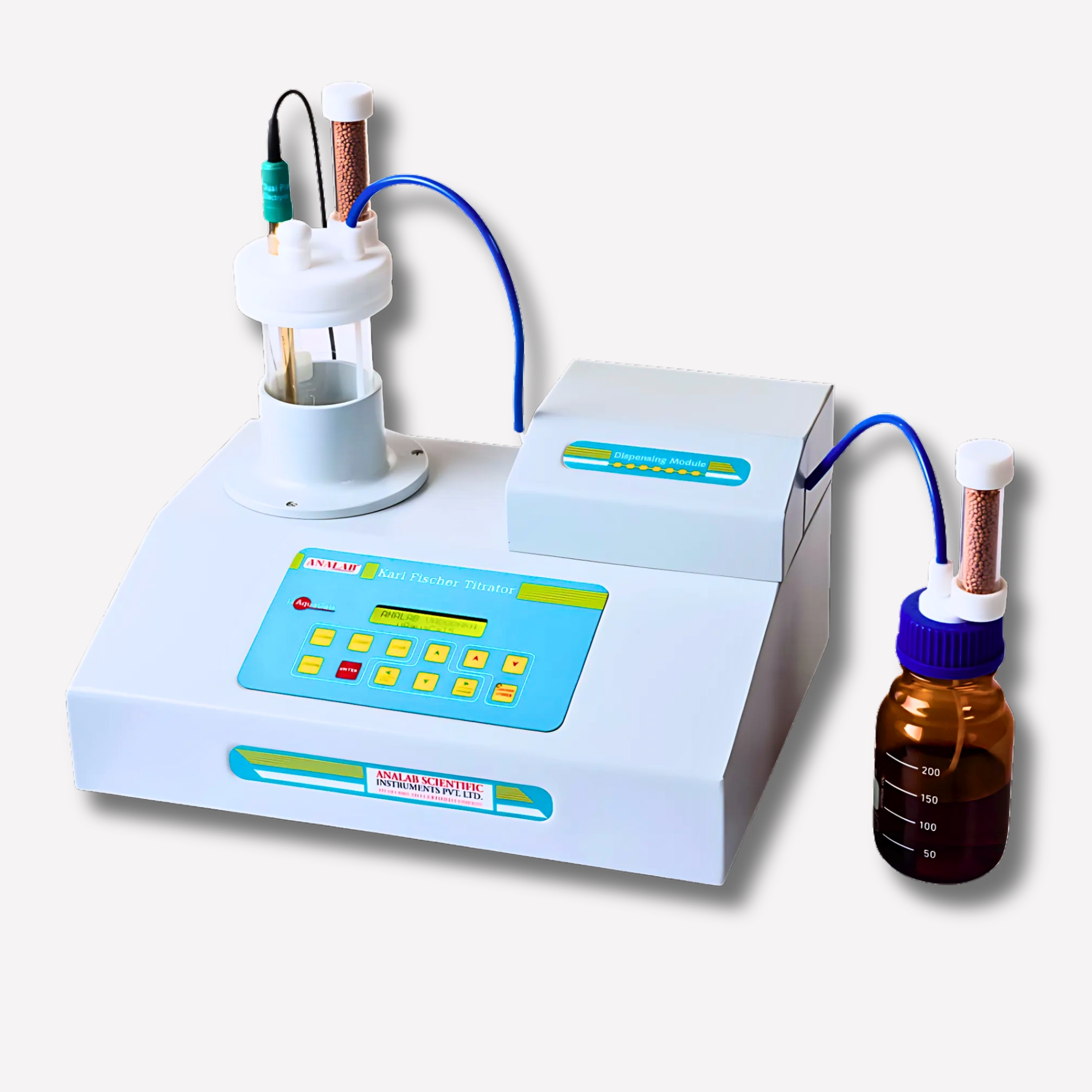

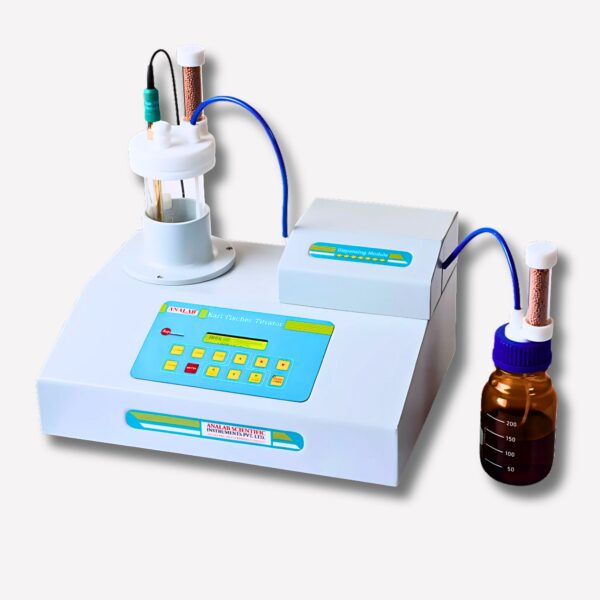

Microcontroller Based Karl Fischer Titrator
Roll over image to zoom in
Supplied with 250ml Reaction Vessel, Dual Platinum Combined Electrode, Teflon Paddle, Teflon Assembly, Moisture Trap (02 Nos.), 250ml Amber Reservoir Bottle, Dispensing Tube (02 Nos.), Micro tip (02 Nos.) Teflon Tube for Dispensing Path, Power Cord, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.
Technical Specification
- Method of Detection: Conductometric / Volumetric
- Range of Moisture Detection: Better than 100 ppm to 100% (depends upon type of sample)
- Dispensing Resolution: 0.01ml
- Magnetic Stirrer: Built-in with soft touch key speed controller
- End Point Time: Fix 20 seconds
- End Point Detection: By Audio & Visual Alarm
- Over titration Alarm: Audio / Visual Alarm at 15 ml to save KF Reagent
- Flush: For cleaning dispensing path
- Factor/Moisture Calculation: Manual Calculation
- Dispenser Calibration/Validation: Onsite by users
- Dispenser MOC: SS-316L & Teflon for corrosion protection & maintenance free operation
- Dispenser Type: Motorized – For accurate measurement
- Teflon Tube: To transfer KF reagent from KF reagent bottle to dispenser & dispenser to reaction vessel
- Material of Construction: Epoxy based powder coated metallic body / GMP enclosure made up of stainless steel
- Type of Electrode: Dual Platinum – Combined Type
- Input: Electrode with Banana Connector
- Error Messages: “Over KF”
- Short Link: Provided to diagnose the problem either with instrument or electrode
- Display: 16 x 2 Line Alphanumeric Backlit LCD
- Keypad: Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS
- Power Supply: 230 VAC ±10%, 50 Hz
