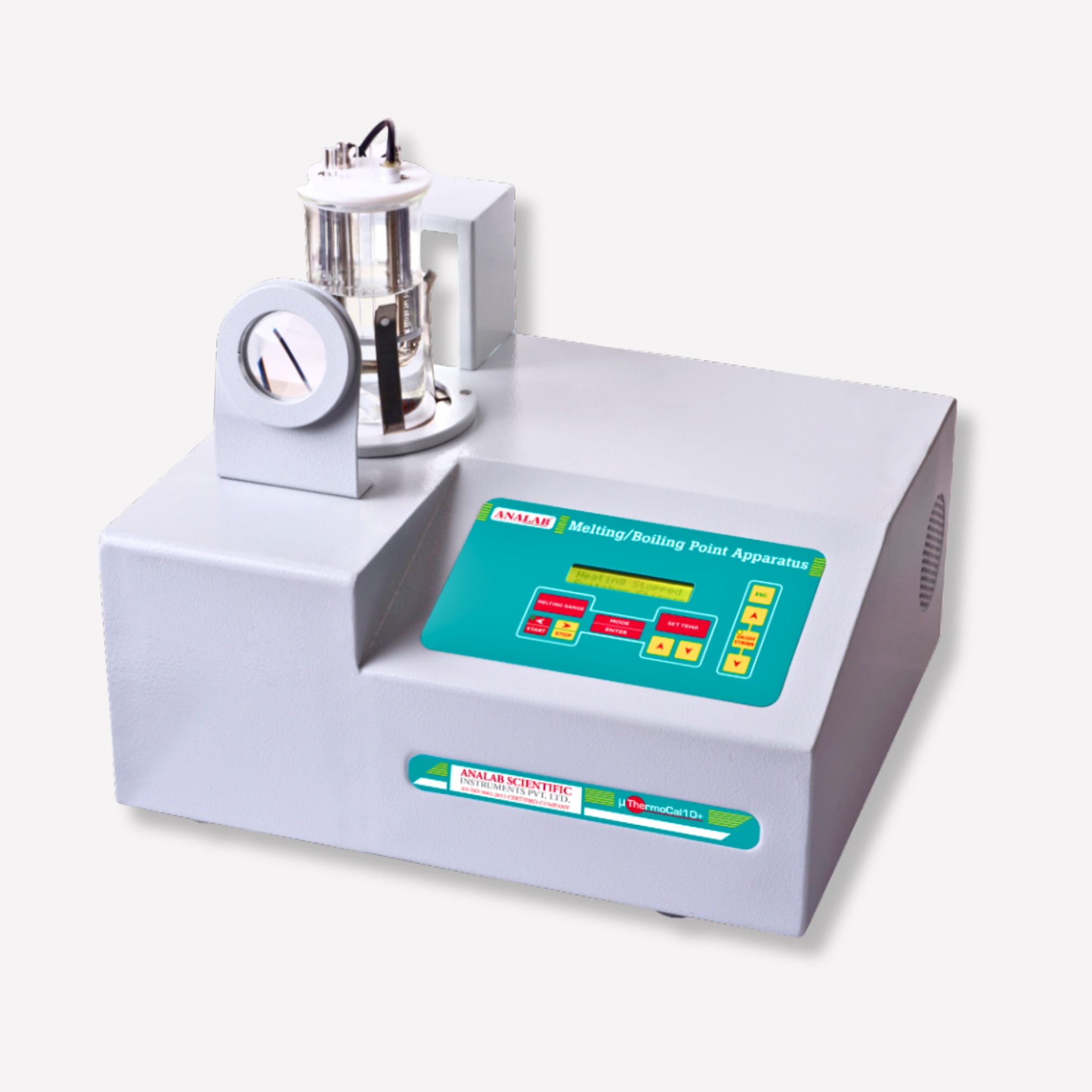

Microcontroller Based Melting/Boiling Point Apparatus – Model : ThermoCal10
Roll over image to zoom in
Supplied with 250ml Beaker, Teflon Lid, Tubular Heater, RTD Sensor, Silicon Oil (200g Bottle), Melting Capillary One End Sealed (Pack of 100 Nos.), Boiling Tube, Teflon Coated Magnetic Paddle, Sample Tapping Rod, Two Melting Standards 49ºC and 238ºC Power Cord, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.
Technical Specification
- Temperature Controller: Microcontroller Based
- Heating Media: By Silicon Oil
- Temperature Range: +5°C above ambient to 300ºC
- Readability: 0.1°C
- Temperature Accuracy: ±0.5°C
- Overheating Protection: 20ºC above expected melting point
- Safety Features: Heater will not turn on, if stirrer is off
- Temperature Calibration: On-site with calibrated thermometer / temperature indicator / Pharmacopeia Standard
- Magnetic Stirrer: Built-in with soft touch Key speed controller
- Melting Capillary Port: Three
- Boiling Tube: One
- Restore Factory Set Calibration Data: Possible by user
- Heating Before Set Point (EMP)*: Automatic heating depending upon temperature difference
- (* EMP: Expected Melting Point)
