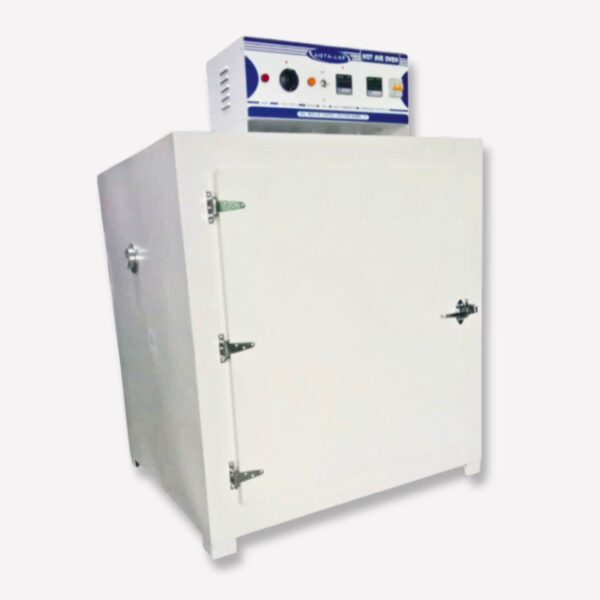

MSI 53 – Hot Air Oven (Memmert Type)
Roll over image to zoom in
The MSI 53 Hot Air Oven (Memmert Type) is a precision-engineered laboratory oven designed for efficient drying, curing, and sterilization. It features a triple-walled construction with a stainless steel inner chamber, glass wool insulation, and a powder-coated exterior for durability and thermal efficiency. Equipped with energy-efficient air heaters and a microprocessor-based PID temperature controller with a PT100 sensor, it ensures uniform heating and accurate control from 50 °C to 250 °C. Ideal for research labs and industrial use, it also offers optional features like a digital timer, data logger, and PC connectivity for enhanced functionality.
Technical Specification
- Triple walled construction.
- Inner made of Stainless Steel 304.
- Exterior made of galvanized sheets powder coated.
- Gap between the two walls filled with glass wool insulation.
- Fully insulated door with brass lock hinges.
- Heating is by specially designed energy efficient air heaters.
- Heaters are fitted at two sides of oven.
- Supplied with GI shelves & Aluminum ventilator.
- Microprocessor based Auto Tune PID temperature controller.
- Simplex A class transition joint PT 100 sensor.
- Forced air circulating system with fan for temperature uniformity.
- Temperature range: 50°C to 250°C
- Temperature resolution: 0.1°C
- Control accuracy: ±2.0°C or better.
Details
| Chamber Size (cm) | Volume | Exterior Dimension | Weight (kg) | Rating | No of Shelves |
|---|---|---|---|---|---|
| 45 x 45 x 45 | 90 ltr | 75 x 75 x 100 | 80 | 1000 W | 3 |
| 45 x 45 x 60 | 120 ltr | 75 x 75 x 115 | 90 | 1250 W | 4 |
| 60 x 60 x 60 | 216 ltr | 90 x 90 x 115 | 100 | 1500 W | 4 |
| 60 x 60 x 90 | 330 ltr | 90 x 90 x 145 | 120 | 2000 W | 5 |
Optional Accessories
- Inbuilt timer
- Castor wheels for easy movability
- Safety thermostat (recommended by us)
- Single channel data logger to print records
- RS-485 for PC communication with 21 CFR Part 11 compliant software
