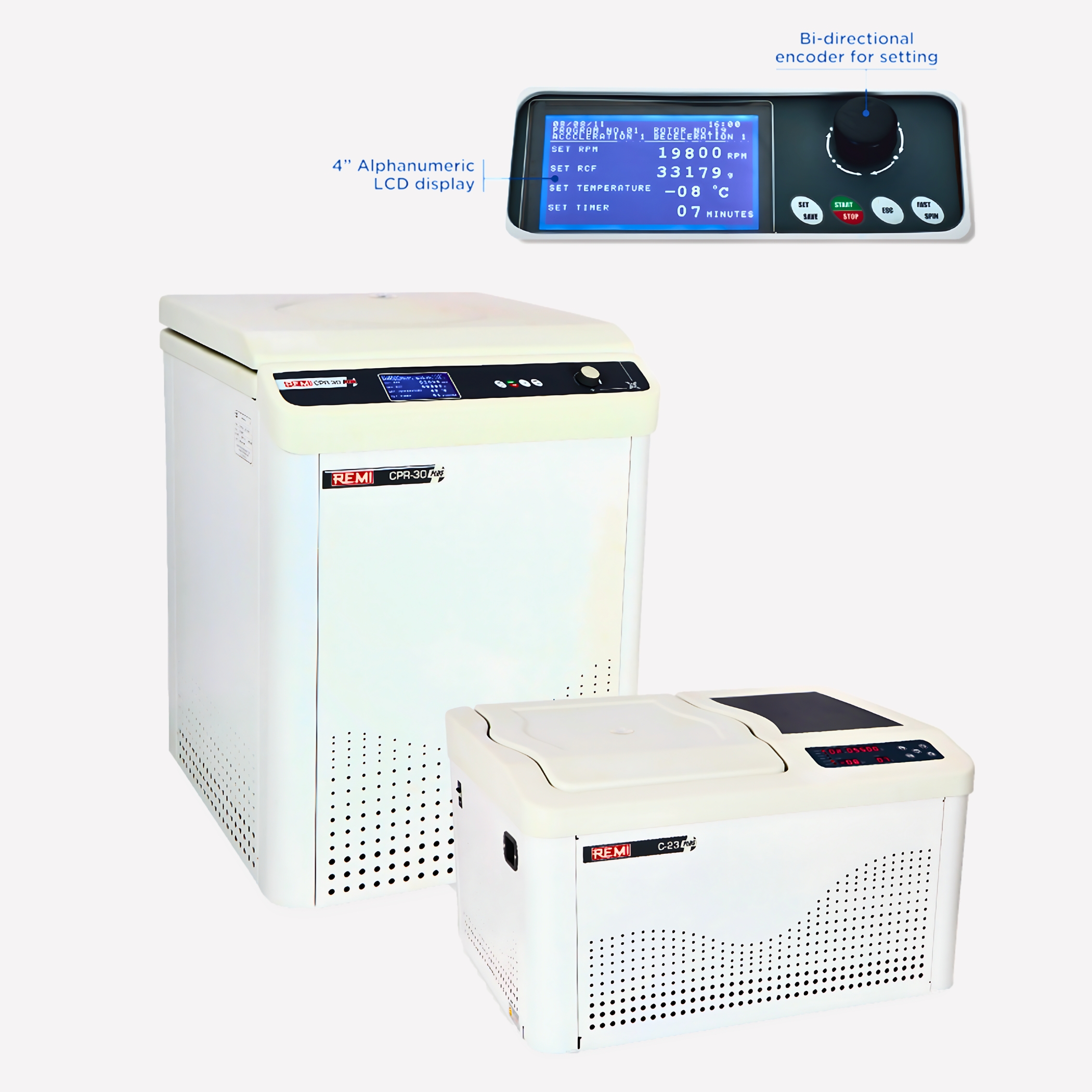

Refrigirated Centrifuge
These Plus series Refrigerated Centrifuges are designed for centrifugation of temperature sensitive material and find application in routine and research work in auxiliary laboratories in industry, Educational & Research institutions, Bio Technology, Medical Laboratories, Hospitals, Blood Banks, Pharmaceutical & Clinical research laboratories.
All the centrifuges have rust proof, easy to clean Stainless Steel centrifuge inner chamber with steel guard. A wide variety of swing out and angle rotors with a choice of reduction adaptors make these units truly versatile.
Users can select models as per their requirements from high volume low speed Centrifuges (C-23 Plus, CPR-23 Plus), low volume high speed centrifuges (C-24 Plus, CPR-24 Plus) in table top design & compact high-speed high volume (C-30 Plus, CPR-30 Plus) floor standing centrifuges.
Models
| Features | Table Top Models | Floor Models | ||||
|---|---|---|---|---|---|---|
| C-23 Plus | CPR-23 Plus | C-24 Plus | CPR-24 Plus | C-30 Plus | CPR-30 Plus | |
| Programable compensation for true sample temperature | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Pre cooling | × | ✓ | × | ✓ | × | ✓ |
| Acceleration Profiles | low, high | 9 | low, high | 9 | low, high | 9 |
| Deceleration Profiles | Coasting | 9 & Coasting | Coasting, low, high | 9 & Coasting | Coasting, low, high | 9 & Coasting |
| Fast Spin | × | ✓ | × | ✓ | × | ✓ |
| Calibration window on lid for speed | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Display | LCD | LCD | LCD | LCD | LCD | LCD |
| Control Communication | Digital | Digital | Digital | Digital | Digital | Digital |
| Self-Diagnostics of errors | × | ✓ | × | ✓ | × | ✓ |
| Parameters setting switches | Feather touch keys | Bi-directional encoder | Feather touch keys | Bi-directional encoder | Feather touch keys | Bi-directional encoder |
| Brushless motor with frequency drive | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Inverter fault detection with auto shut down | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| CFC free refrigeration system | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| No. of Programs | × | 99 | × | 99 | × | 99 |
| Last set parameters recall | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Choice of rpm / rcf setting | RPM | RPM / RCF | RPM | RPM / RCF | RPM | RPM / RCF |
| Temperature display | °C | °C / °F | °C | °C / °F | °C | °C / °F |
| Digital countdown timer 0-99 min & Continuous run | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Log of cumulative run time | × | ✓ | × | ✓ | × | ✓ |
| Automatic Rotor Identification | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Motor overload protection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Emergency lid lock release | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Imbalance detection with centrifugation cut off | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Password protection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Gas Hinge to prevent door falling | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Technical Data
| Technical Data | |||||
|---|---|---|---|---|---|
| Models | C-23 Plus CPR-23 Plus |
C-24 Plus CPR-24 Plus |
CPR-24i Plus | C-30 Plus CPR-30 Plus |
|
| Max. Speed | 7000 | 20000 | 20000 | 20000 | |
| Max. RCF | 7400 | 37570 | 37570 | 37570 | |
| Max. Tube Size | 250 | 100 | 250 | 250 | |
| Max. Capacity | 1200 | 400 | 1000 | 1200 | |
| *Lowest Temp. | -8 | -8 | -10 | -8 | |
| #Noise | ≤ 60 dB | ≤ 60 dB | ≤ 60 dB | ≤ 60 dB | |
| W x D x H | 800 x 600 x 500 | 775 x 575 x 475 | 830 x 650 x 500 | 660 x 765 x 945 | |
| Voltage Stabilizer | VS-03 | VS-03 | VS-03 | VS-03 | |
Supply: 220-240 Volts 50 Hz single Phase.
*Note: Depending on capacity, type of rotor, centrifugation speed, ambient temperature and other process parameters.
