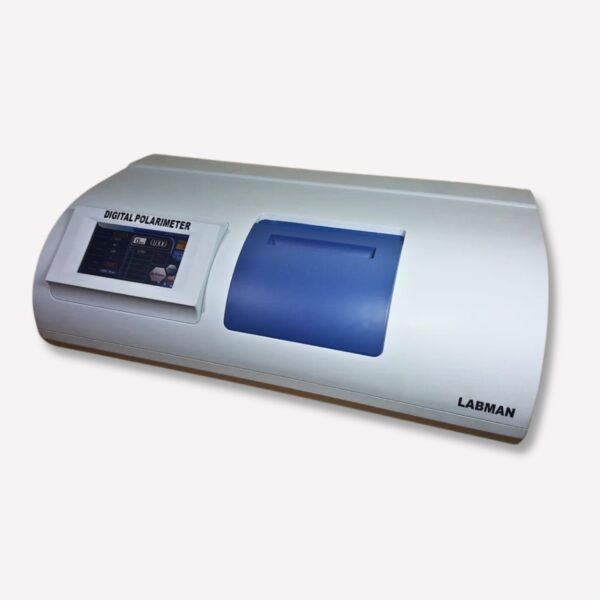

Touchscreen Automatic Digital Polarimeter ADP45
Roll over image to zoom in
The polarimeter is an instrument used for determining the Optical rotation of substances. In this way, the concentration, content, purity, etc of certain substances can be find out. Therefore, the polarimeter has become one of the most useful instruments in laboratories of sugar industry, pharmaceutical industry, oil refining, foodstuff industry, chemical industry, universities and scientific research field.
Feature
Salient Features:
- Touch screen colour display
- Temperature display
- Faraday magneto-optical modulator
- Digital Polarimeter based on Optical null principle
- Polarizer Polarizing film
- No warm-up time is required when instrument is switched on
- Measuring multiple scales – specific rotation, optical rotation, sugar degree and concentration
- Automatic repetition-measurement for 6 times, and calculation of average value.
Pharmaceutical industry:
- Monitoring chemical processes
- Purity control and determination of concentrations
- Characterizations of new synthetic substances
- Hospitals & Pharmacies
Chemical industry:
- Purity control and determination of concentrations
- Analysis of optically-active components (qualitative and quantitative)
- Determination of changes in the configuration
- Monitoring chemical processes
Sugar industry:
- Quality control of original and end product
- Determination of fructose and glucose
Food industry:
- Determination of concentration
- Purity control
- Quality control
Specification
| Brand | Labman |
| Model Name/Number | ADP 45 |
| Usage/Application | Laboratory |
| Light Source | LED |
| Display | 8″ Colour datamatrix Touch Screen |
| Weight | 35 Kg |
| Accuracy | 0.5g/100ml |
| Resolution | 0.1mg/ml |
| Sample Transmittance | > 1% |
| Interface | USB & RS232C |
| Length of Test Tube | 100mm |
| Dimension LxWxH(mm) | 850 x 470 x 380 mm |
| Operation Wavelength | 589.3nm |
| Measuring Mode | Concentration |
