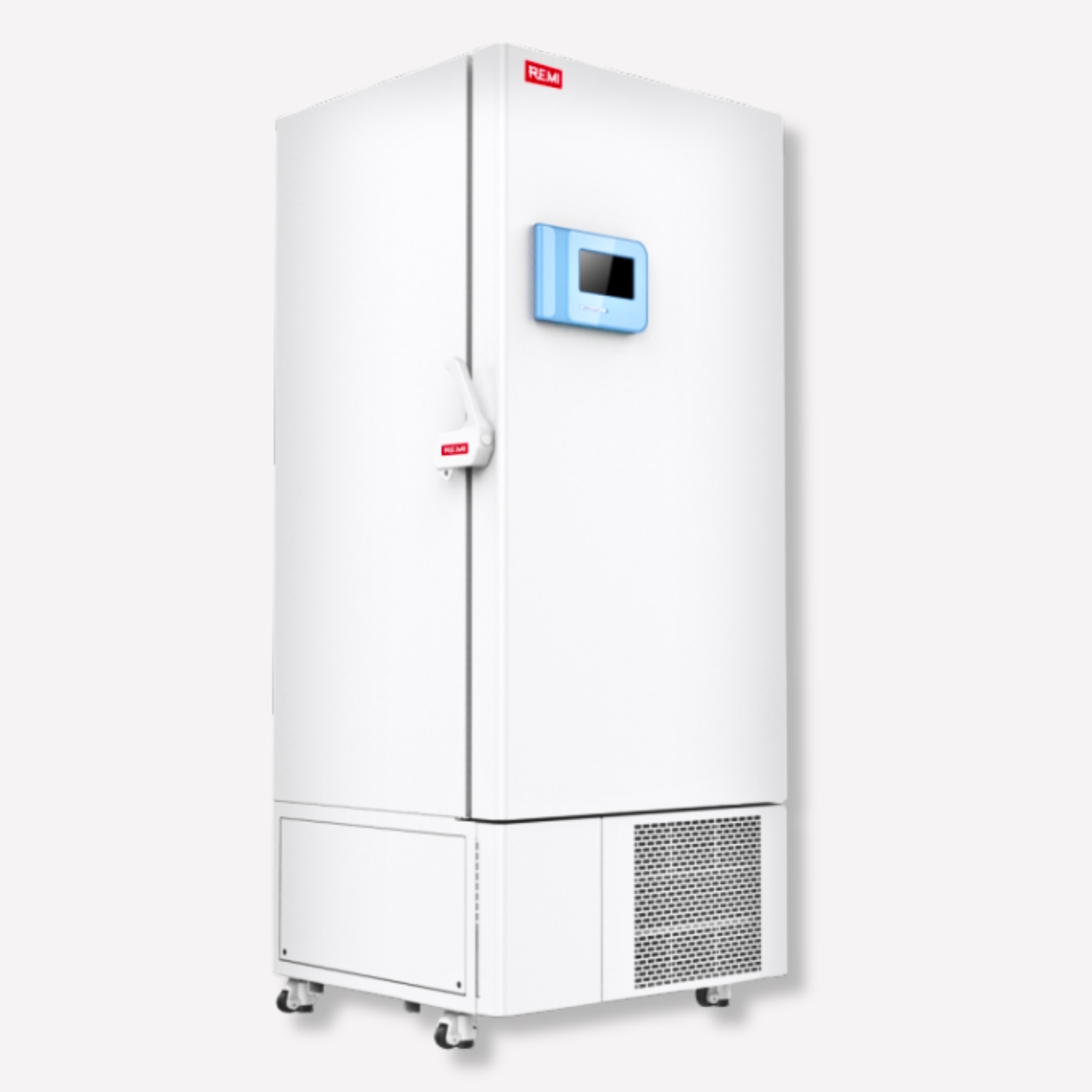

Ultra Low Deep Freezer
Roll over image to zoom in
REMI’s new range of Ultra-Low Temperature (ULT) freezers are specially designed for faster temperature pull down & optimized cryopreservation. Highly sensitive microprocessor control ensures precise temperature management at-86°C. Recommended Ambient Temperature < 27°C.
Feature
- Efficient CFC free insulation with high core density reduces temperature loss
- Optimized compressor run ensures energy efficiency
- Hot line across the door assembly to prevent frost formation
- Efficient CFC free dual refrigeration system ensures fast temperature pull down
- Quadruplicate step silicon rubber gasket for complete insulation
- Independent internal foamed doors with plastic handle
- Smart Handle with LED door closure indication
- Port for calibration probes / safety back up
Audio Visual Alarms For:
- Temperature high / low
- Power failure
- Door Open
- Compressor on (only visual)
- Power on (only visual)
Settable Points Of:
- Temperature high / low
- High / low temperature alarm point
Additional Features:
- Rounded inner chamber for easy cleaning
- Attractive door profile
- Weight carrying capacity of each tray: 30 Kg uniformly distributed
- Vacuum Release Valve for easy door opening
Optional:
- Touch screen display (TFT) with additional features (Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
Other Feature
LCD DISPLAY
FEATURES
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain temperature in case of sensor failure
- Battery Backup for Temperature Controller
- Auto tuning of controller
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Settable High / low alarm points
- Memory for storage of upto 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- Alarm on equipment / output for remote alarm
TOUCH SCREEN DISPLAY
FEATURES
- 7 inch big colour touch screen
- PLC (Programmable logic controller)
- Standby refrigeration (optional)
- Memory of 1500 records
- Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval
- Ethernet port
- Remi “Datasoft” Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)
REMI ‘DATA SOFT’
FEATURES
- Multiple level alpha numerical password with password ageing
- Secured audit trail report
- Alarm report with mention of alarm condition
- Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
- Reports in graphical and tabular form
- Data Stored in PC server with LAN connectivity and can be monitored on PC with password authentication
- Multi chamber data acquisition on single software
- Communication through RS 485 / TCP IP
- GSM Mobile Alert for six Numbers
- Power failure and resumption recorded with date and time
OPTIONAL ACCESSORIES
TO BE ORDERED SEPARATELY
- Data logger for 8 Point temperature recording with sensor printer interface and software
- Seven days circular chart recorder
- Software as per 21 CFR Part 11 requirements
- PLC Based Control System with HMI Touch Screen
- Biometrics Magnetic Door Access for Secured Door opening with software to maintain log
- Validation (mapping) consist of one cycle for temperature at any one set point for 24 hours on empty and loaded condition
- GSM alert through SIM card
Technical Data
| Particulars | ULT-90 | ULT-185 | ULT-360 |
|---|---|---|---|
| Internal Volume (Liters) | 90 | 185 | 360 |
| No. of trays | 2 | 3 | 6 |
| No. of Internal Door | 1 | 2 | 4 |
| Internal Dimension W x D x H (mm) | 400 x 400 x 580 | 510 x 510 x 730 | 700 x 510 x 1000 |
| External Dimension W x D x H (mm) | 711 x 877 x 1405 | 820 x 987 x 1560 | 1010 x 987 x 1830 |
| Operating Temperature Range | -45°C to -86°C | ||
| Insulation (CFC free polyurethane foam) | Body: 150 mm sides, 300 mm Back, Door: 110 mm | ||
| Temperature Control | Microprocessor with PT-100 sensor | ||
| Display | 4” LCD | ||
| Power Failure Alarm | Audio Visual Alarm | ||
| Door Open Alarm | Audio Visual Alarm in case door open for over one minute | ||
| Inner Body Material | S.S. 304 (AISI Grade, Non Corrosive, Non Magnetic) | ||
| External Body Material | Powder Coated CRCA Steel | ||
| Noise Level | Less Than 65 db(A) | ||
| Battery Backup | Rechargeable, Back Up 8 hrs (for alarm system & temperature recorder) | ||
| Recommended Voltage Stabilizer | VS 05 | VS06 | VS07 |
| Electrical | 220-240 volts, 50 Hz, SINGLE PHASE | ||
