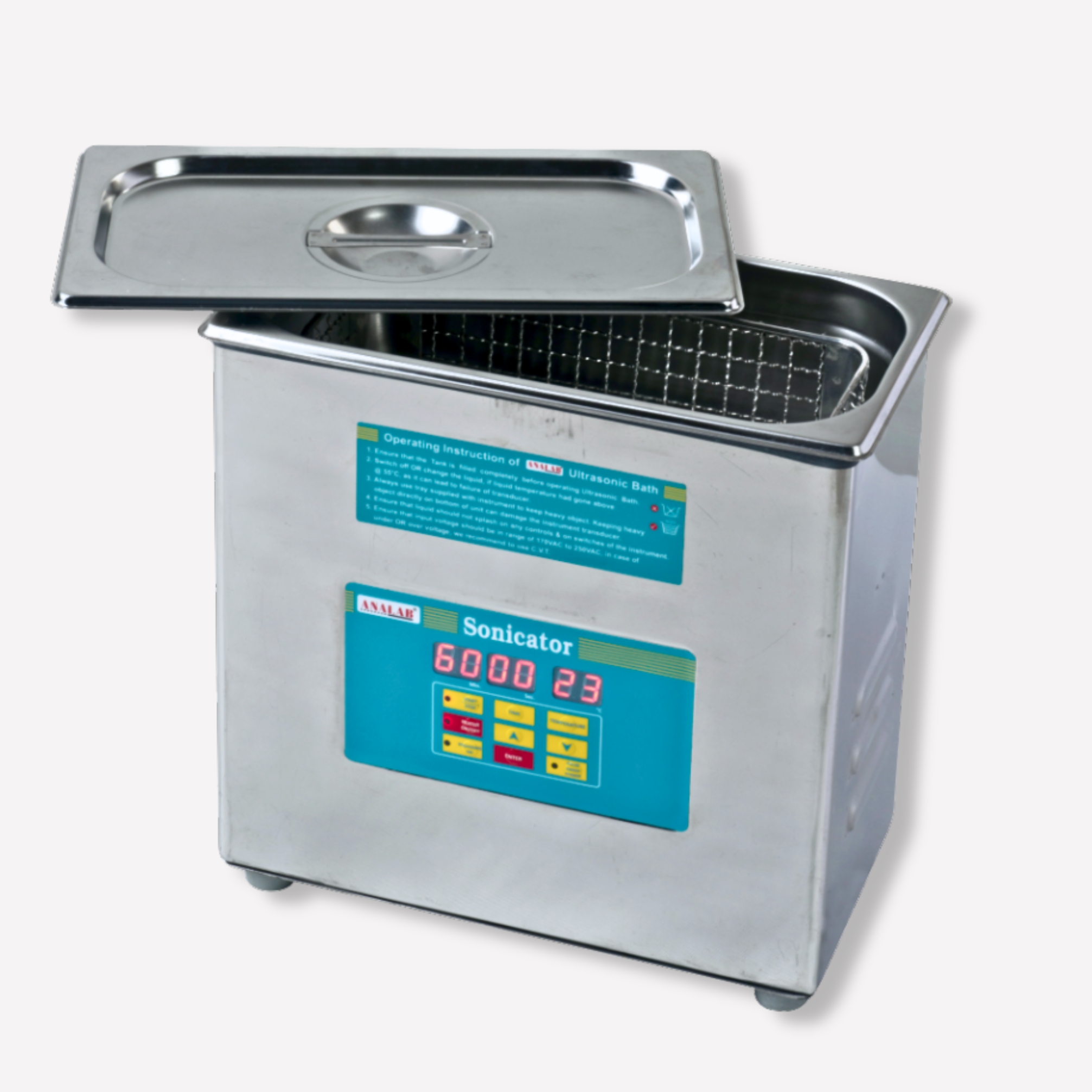

Ultrasonic Bath Device

Technical Specification

Controller : Microcontroller Based
Technology : Latest IGBT Based
Display : 6 digit Large LED Display for time & temperature
Timer : 99 minutes and 59 seconds
Transducers : PZT sandwich type, bonded at the base of SS tank.
Transducer Frequency : 33 ± 3 KHz (40 KHz will be available optionally)
Frequency Display : Yes
Temperature Range : 5ºC above ambient to 80ºC
Type of Heater : Silicon / Cartridge
Auto Degassing : Yes, user adjustable time
Unit & Tank MOC : Stainless Steel
Drain Valve : ½” Ball Valve will be provided to clean the tank. (6.5 Liters & Above)
Power Supply : 230VAC ± 10%, 50Hz

Technical specification like Size of Tank, Ultrasonic Power

Sr. No.	Model	Tank Capacity	Tank Size (L X W X H)	Basket Size (L X W X H)	Ultrasonic Power Watts	Heater Power Watts
01	AU33-2.5	2.5 Liters	228 X 140 X 100 mm (9″ X 5.5″ X 4″)	200 X 100 X 60 mm	60	240
	AU40-2.5
02	AU33-3.5	3.5 Liters	300 X 150 X 100 mm (12″ X 6″ X 4″)	250 X 100 X 60 mm	120	240
	AU40-3.5
03	AU33-6.5	6.5 Liters	250 X 250 X 100 mm (10″ X 10″ X 4″)	200 X 200 X 75 mm	180	240
	AU40-6.5
04	AU33-10	10.0 Liters	300 X 228 X 150 mm (12″ X 9″ X 6″)	270 X 190 X 100 mm	240	480
	AU40-10
05	AU33-15	15.0 Liters	400 X 250 X 150 mm (16” x 10” x 6”)	350 X 200 X 100 mm	360	480
	AU40-15
06	AU33-20	20.0 Liters	455 X 300 X 150 mm (18″ X 12″ X 6″)	420 X 270 X 100 mm	480	480
	AU40-20
07	AU33-25	25.0 Liters	500 X 250 X 200 mm (20” X 10” X 8”)	450 X 200 X 150 mm	600	480
	AU40-25
08	AU33-30	30.0 Liters	500 X 300 X 200 mm (20″ X 12″ X 8″)	450 X 250 X 150 mm	720	480
	AU40-30
09	AU33-42	42.0 Liters	760 X 320 X 175 mm (30” X 13” X 7”)	710 X 250 X 150 mm	780	720
	AU40-42
